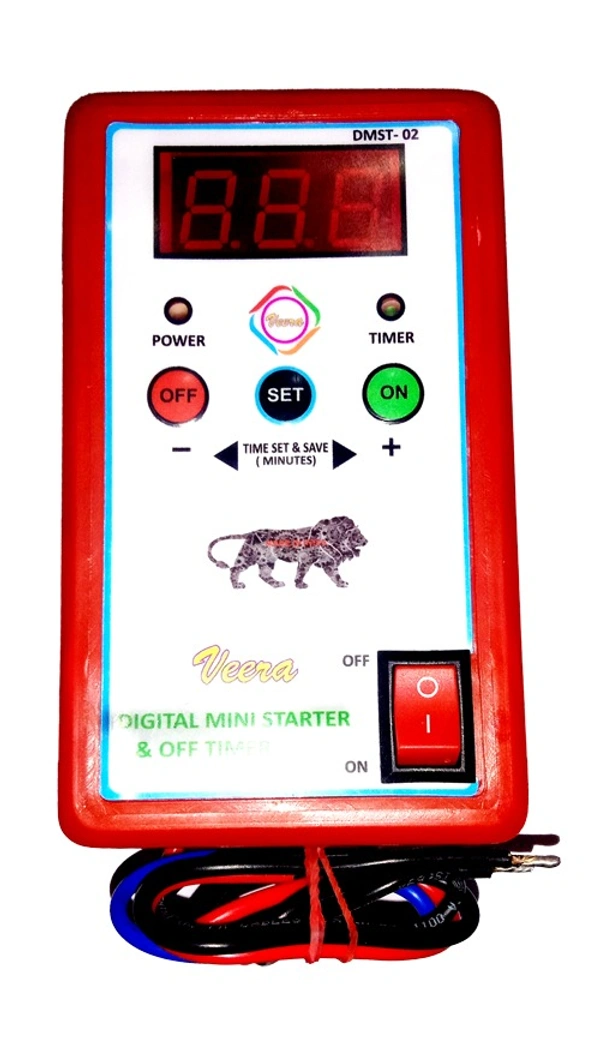

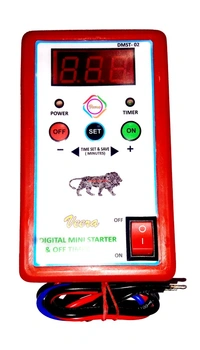

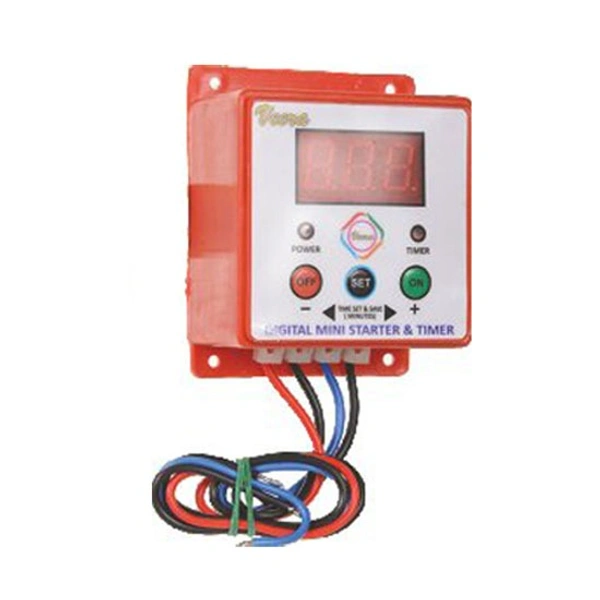

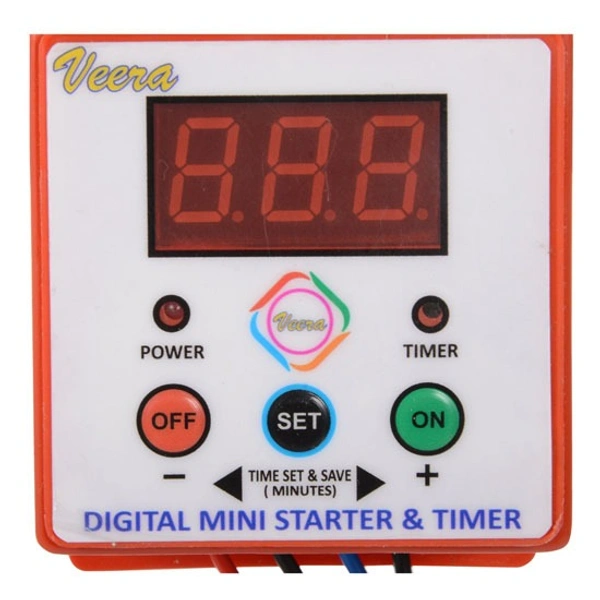

Digital Mini Starter & OFF Timer ( Single Phase )

• Smart & Compact Design
• Microcontroller Based Design
• Seven Segment Digital Display
• Auto OFF Funtion with Timer
• 0 Adjustable Timer from 1 Minute to 600 Minutes
• User Friendly Settings
• Start & Stop Button
• Auto Shut OFF on Power Failure

• Save the Devices from Over Usage
• Avoid Human Errors like Forget the Device to Turn OFF
• Save Electricity Bill by avoiding unnecessary usage of devices
• Save Water ! (if using for Motors)
• Easy installation

Specifications:

Operating Voltage :      90 V to 270 V

                                         AC 50/60 Hz

Load Rating.           :      7A / 20 Amps @ 230 V

Time Setting           :      1 min to 600 minutes

Manual Mode          :      Set time 0 for Manual

Warranty.                  :      6 months

Applications:

• All Electrical or Electronic Devices which require delayed OFF time settings.
• Suitable for Self Priming Motors, Jet Pumps,Open Well Starters & Submersible Pump Starters.
• Also useful for Heaters, Air Conditioners Air Coolers etc.

1. Connect Input Phase and Neutral ( P & N ) wires to Main supply
2. Connect Output Phase and Neutral ( P & N ) to starter or motor input
